ACR PowerWatch: Voltage Disturbance Recorder for Power Quality Troubleshooting
Intermittent electrical problems can be difficult to diagnose. Equipment may suddenly reset, trip, shut down, or behave unexpectedly, while the actual voltage disturbance disappears before maintenance teams can investigate it. The ACR PowerWatch voltage disturbance recorder provides a practical way to capture and document these events. Designed for single-phase electrical systems, PowerWatch uses event-based monitoring to record important voltage disturbances with date and time information.
What Is ACR PowerWatch?
ACR PowerWatch is a compact, plug-in power quality monitoring and voltage event recording solution. Unlike a full power quality analyzer, it focuses on detecting and recording specific electrical disturbances rather than continuously capturing voltage waveform.
This makes it useful as a first-line power quality diagnostic tool when investigating equipment resets, nuisance trips, unexplained failures, intermittent faults, or suspected electrical disturbances.
What Types of Events Does PowerWatch Record?
PowerWatch records voltage sags, surges, outages, impulses, and frequency variations based on user-defined threshold settings. Each detected event is time-stamped, allowing maintenance teams to correlate electrical disturbances with equipment behavior or reported incidents.
For example, a voltage sag may occur when a large motor or compressor starts. Similarly, a short outage or voltage swell may affect sensitive control equipment without being immediately noticed by personnel.
Key Features of ACR PowerWatch

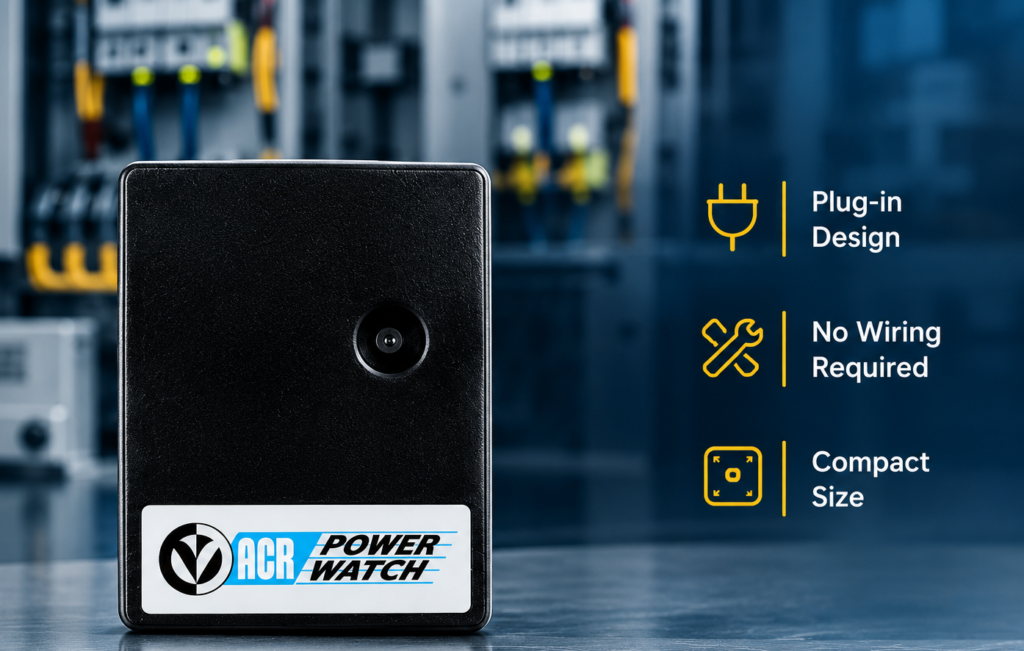

True Plug-In Installation

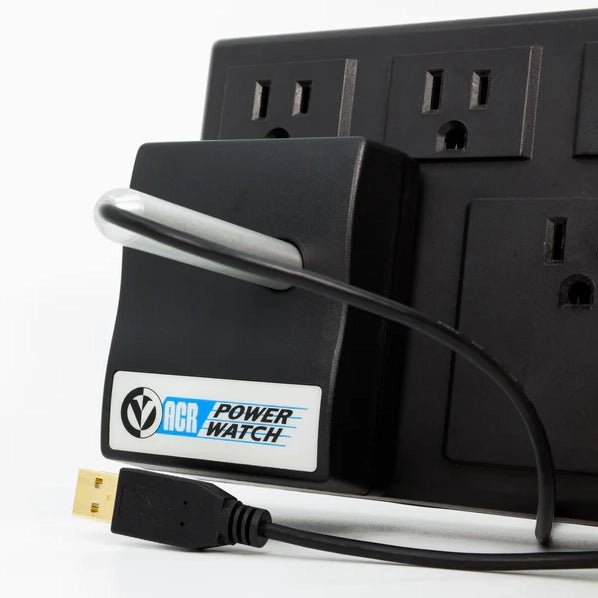

Connect PowerWatch directly to a standard outlet. No external wiring, probes, or panel access are required.
Effective First-Line Diagnostic Tool
Confirm or rule out suspected power quality issues before deploying a full power quality analyzer or engaging electrical services.
Event-Based Voltage Monitoring
Record sags, swells (over-voltage events), outages, impulses, and frequency variations without continuous waveform capture or complex setup.
Time-Stamped Disturbance Logging
Every recorded event includes date and time information, helping correlate disturbances with equipment resets, trips, alarms, or failures.
Hot-to-Neutral and Neutral-to-Ground Monitoring
PowerWatch monitors both hot-to-neutral and neutral-to-ground conditions, helping investigate whether disturbances may be associated with the supply or facility-side electrical system.
User-Configurable Thresholds
Set voltage, impulse, and frequency limits so the logger focuses on meaningful events rather than unnecessary data.
Up to 4,000 Stored Events
Its non-volatile memory can store up to 4,000 events, supporting extended or unattended monitoring.
Optically Isolated Interface
The Lite-Link® optical interface provides electrical isolation between the monitored circuit and the connected PC during data transfer.
Simple Windows® Software
ACR EventReader™ software allows users to configure PowerWatch, download recorded data, and generate summary or detailed event reports.

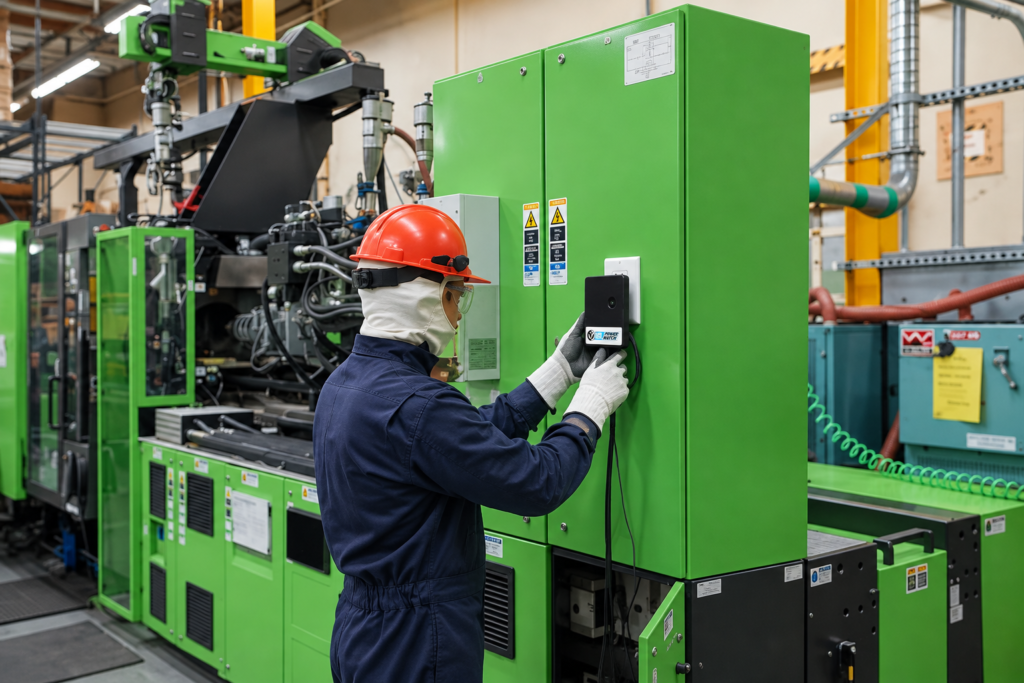

How PowerWatch Helps With Power Quality Troubleshooting
When an electrical problem happens only occasionally, finding the cause can require continuous observation. PowerWatch provides a simpler approach: install it, configure the required thresholds, allow it to monitor the circuit, and review the recorded events later.
The resulting time-stamped data can help determine whether voltage disturbances coincide with equipment problems. It can also help maintenance teams decide whether further investigation with advanced power quality instruments is necessary.
Typical Applications of a PowerWatch
Industrial equipment troubleshooting
Control Panels
Manufacturing machinery
Intermittent equipment resets
PLC and automation systems
Sensitive electronic equipment
Facility power systems
Utility or facility-side disturbance investigation
PowerWatch vs. Full Power Quality Analyzers
PowerWatch is not a replacement for a full power quality analyzer. It does not provide continuous waveform capture, harmonic analysis, or THD measurement. Instead, its purpose is to provide a straightforward way to detect and document common voltage disturbances before deciding whether deeper power quality analysis is required.
For maintenance and electrical troubleshooting teams, this makes PowerWatch a practical voltage disturbance logger for identifying when power quality events occur and building measurable evidence around intermittent electrical problems.
